  • 运行报错 。硬件设备openmv3 cam7.固件4.02



    • # Find Line Segments Example
      #
      # This example shows off how to find line segments in the image. For each line object
      # found in the image a line object is returned which includes the line's rotation.

      # find_line_segments() finds finite length lines (but is slow).
      # Use find_line_segments() to find non-infinite lines (and is fast).

      enable_lens_corr = False # turn on for straighter lines...

      import sensor, image, time

      sensor.reset()
      sensor.set_pixformat(sensor.RGB565) # grayscale is faster
      sensor.set_framesize(sensor.QQVGA)
      sensor.skip_frames(time = 2000)
      clock = time.clock()

      # All lines also have `x1()`, `y1()`, `x2()`, and `y2()` methods to get their end-points
      # and a `line()` method to get all the above as one 4 value tuple for `draw_line()`.

      while(True):
          clock.tick()
          img = sensor.snapshot()
          if enable_lens_corr: img.lens_corr(1.8) # for 2.8mm lens...

          # `merge_distance` controls the merging of nearby lines. At 0 (the default), no
          # merging is done. At 1, any line 1 pixel away from another is merged... and so
          # on as you increase this value. You may wish to merge lines as line segment
          # detection produces a lot of line segment results.

          # `max_theta_diff` controls the maximum amount of rotation difference between
          # any two lines about to be merged. The default setting allows for 15 degrees.

          for l in img.find_line_segments(merge_distance = 0, max_theta_diff = 5):
              img.draw_line(l.line(), color = (255, 0, 0))
              # print(l)

          print("FPS %f" % clock.fps())

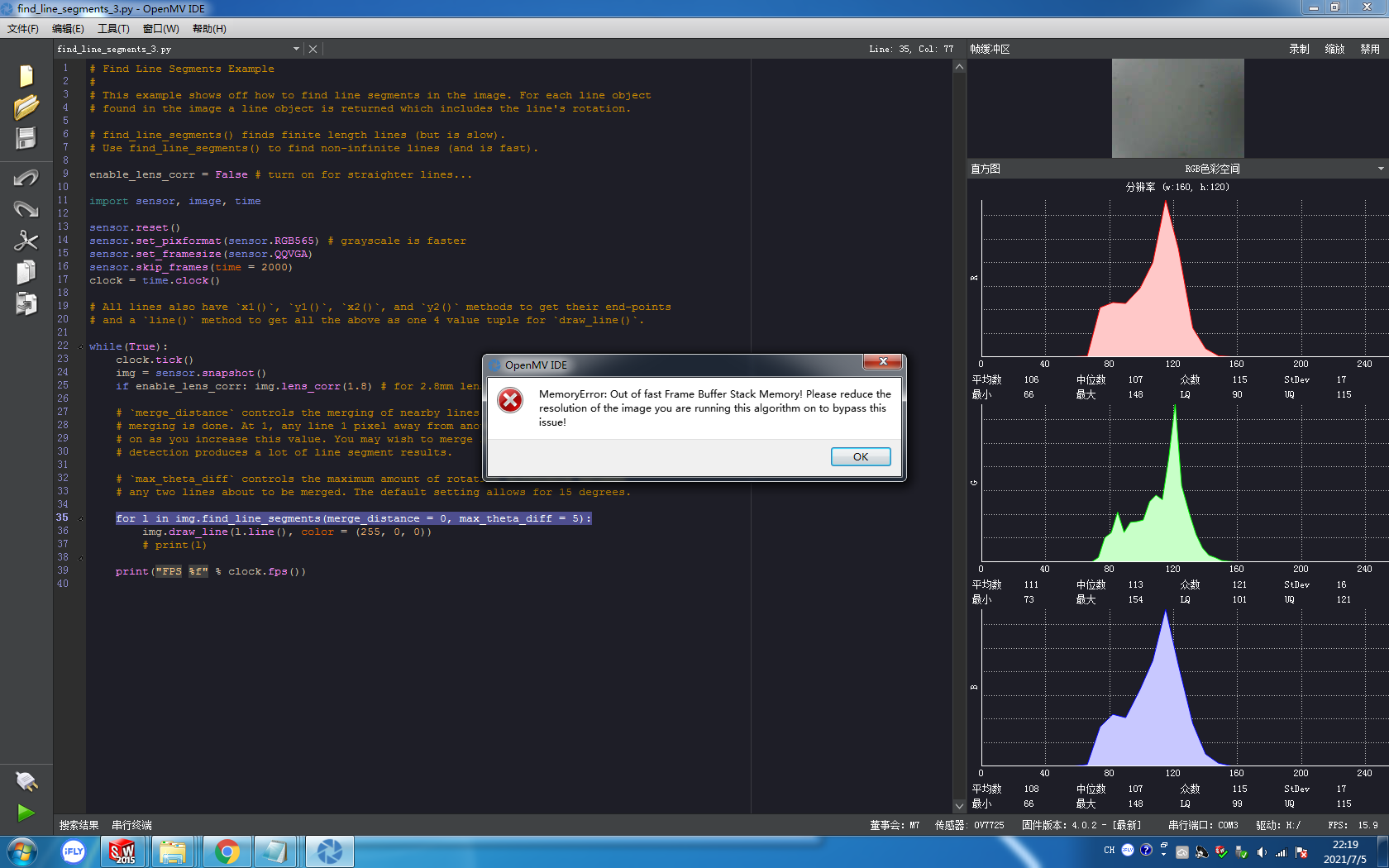

      ![0_1625494858820_无标题.png](https://fcdn.singtown.com/e258a9ff-3637-4137-985d-e2374b07b7aa.png)





    • 这个算法占用内存比较大,OpenMV3上只能用QQQVGA
